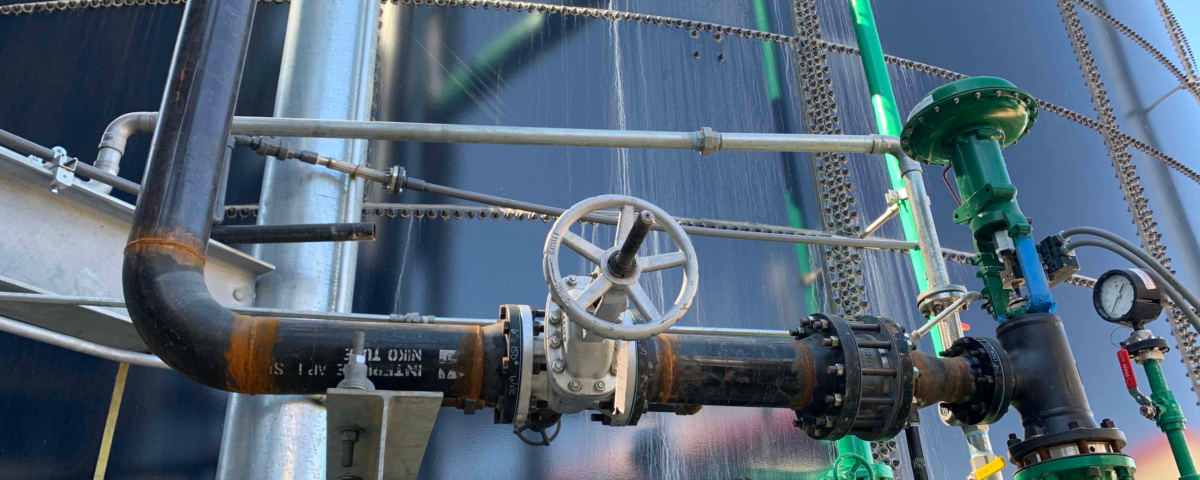

ProSonix recently shipped a PSX400 (4” Steam connection) J-Series Steam Jet Diffuser with modulating steam control to a food processing customer in the US. The inline heater was installed on a large 16” line and is used to reduce solids and maintain a constant slurry temperature of 96°F.
The anaerobic wastewater treatment process is designed to breakdown a biosolid slurry that is waste solids from the food processing. The slurry is recirculated from a very large anaerobic digestor through the heater. The heater maintains optimal temperature to allow bacteria to breakdown the solids and reduce the amount of waste sent to a landfill.
This approach eliminated the need for a large inline heat exchanger and provided significant cost savings for the customer.

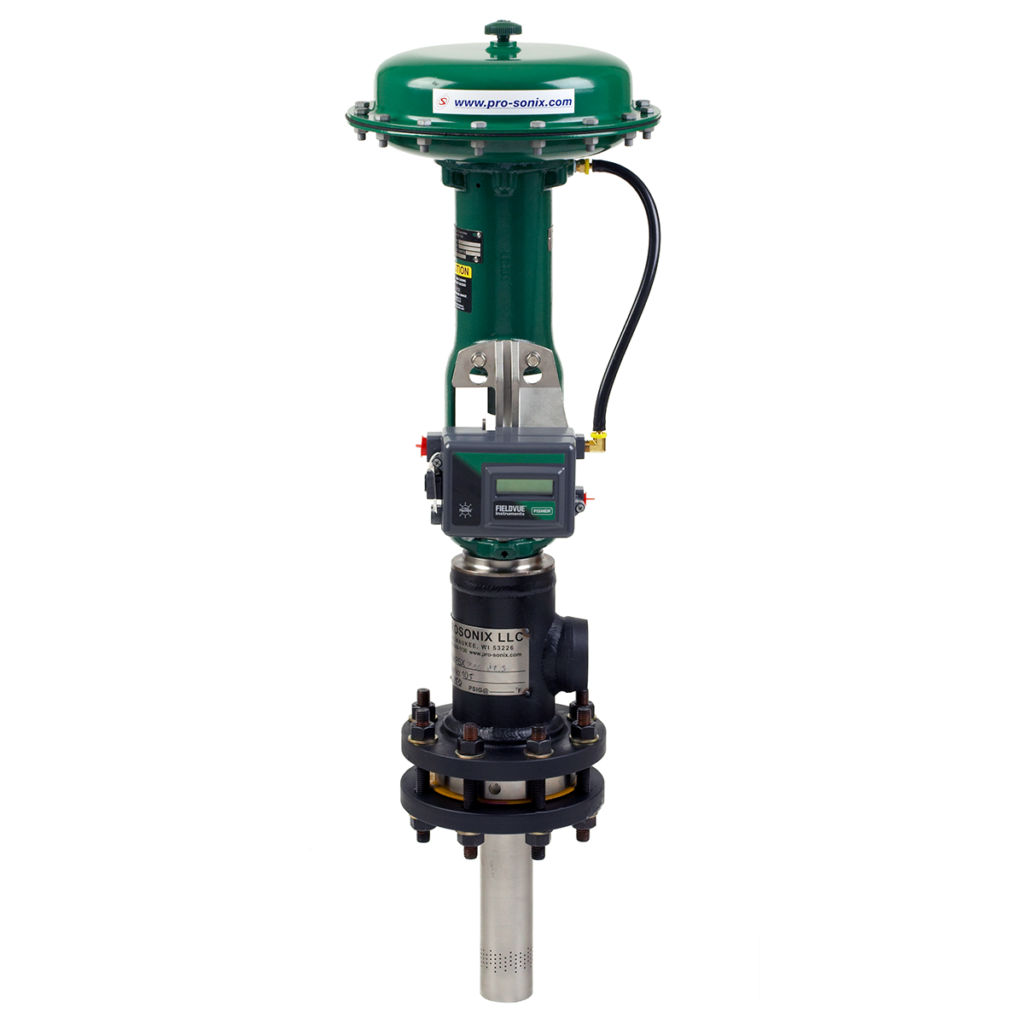

Features of the ProSonix Steam Sparger and Industrial Inline Heater
Tank Heating: PSX Jet Sparger is designed to mount on a tank or vessel for fluid or slurry heating applications.
Inline Heating: PSX J Series Jet Diffuser is designed to be mounted in your existing process piping for continuous water or slurry heating applications.
Operation: Open/Close double acting air cylinder controls the flow of steam through the Jet Sparger.
Optional Modulating steam flow design also available.
Control: Plant air signal of 60 psig required for operation.
Temperature Control: Integrates well with customers temperature control loop.
Compact design suitable for minimal installation space requirements. Can be installed in any orientation.
MOC: Standard materials of construction are carbon steel and 316SS or special alloys upon request.
Connection: Standard 150 psig RF flange for steam and tank connection. 300 psig available as an option.
Single or Multiple unit configurations.
