Save Installation Costs with the ProSonix I Series Steam Injection Heater

The ProSonix I Series offers a unique design that allows the ability to size the steam injector and the liquid flow path independently.

The steam injection portion is size based on the required steam demand of the process. The liquid flow path is sized based on the liquid flowrate, the customer pipe size to match process piping, and any important fluid characteristics.

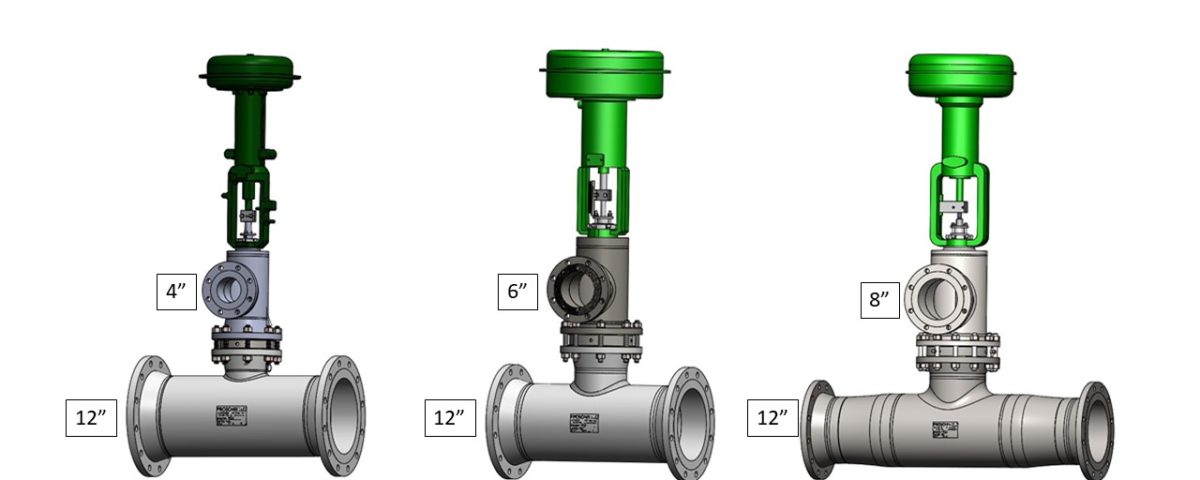

For example, a 4” steam injector can be paired with a 4”, 6”, 8”, etc. liquid injector. By fitting in the process piping like a pipe spool, this greatly reduces installation costs and provides more flexibility for the piping required for the application.

The I Series Direct Steam Injection Heaters are used for many applications:

• Water Heating
• Instant Hot Water
• Slurry Heating
• Sludge Heating
• Wastewater
• Anaerobic Digestion
• Whitewater heating
• Green Liquor heating
• Biogas Production
• Biomass
• Fibrous Slurries
• Aggressive Fluid Applications

Features of the I Series Inline Heater

• Steam injection heater with internally modulated steam control
• Radial Multi-port Steam Injector design assures uniform heating for stable & smooth operation
• Internally Modulated steam flow control achieves choked flow conditions for sonic flow (high velocity) steam injection
• Precise temperature control of +/- 1 deg F
• Energy savings results from low pressure drop (typically 1-2 psig)
• Integral Actuator eliminates steam control valve requirements
• Self cleaning design eliminates plugging/fouling with no mineral or scale build-up.
• Handles flow rates from 1 – 15,000 gpm.
• Simplified installation with inline design and positional steam inlet
• Temp rise of up to 250 °F in a single pass through the heater.
• Patent No. 8,167,278,B2

Contact the team at ProSonix to learn more about the I Series and
determine how injection steam heating can benefit your application.
